Design
Description
The Italian brand launches ALL-IN, the first aluminium gravel frame with integrated cable routing. Entirely made in Italy, customizable in size and colour.
When the road ends, just go ALL-IN. TITICI is proud to present the new ALL-IN gravel frame, entirely made in Italy with Dedacciai aluminium tubing and integrated cable routing. The first of its kind in the Italian brand’s range. Stable, strong, ultra-reliable and technologically advanced, ALL-IN is designed for adventures on dirt tracks and unpaved roads: from short weekend rides to bikepacking into the unknown. True to TITICI’s custom philosophy, the ALL-IN frame is fully customizable in colour and size.
DEDACCIAI ALUMINIUM TUBING CUSTOMIZED FOR TITICI
ALL-IN is the result of the collaboration with Dedacciai, a leading Italian company that produced the high quality aluminium tubes with exclusive shapes, according to the design of the TITICI engineers. The flattened section of the top tube, the unique geometries of the rear triangle and the oversized head tube contribute to the high stability and strength of the frame. The handmade welds, the carbon fork and the bikepacking predisposition complete a model that is ready to explore new terrain.
CABLES DISAPPEAR, RIDE STABILITY INCREASES

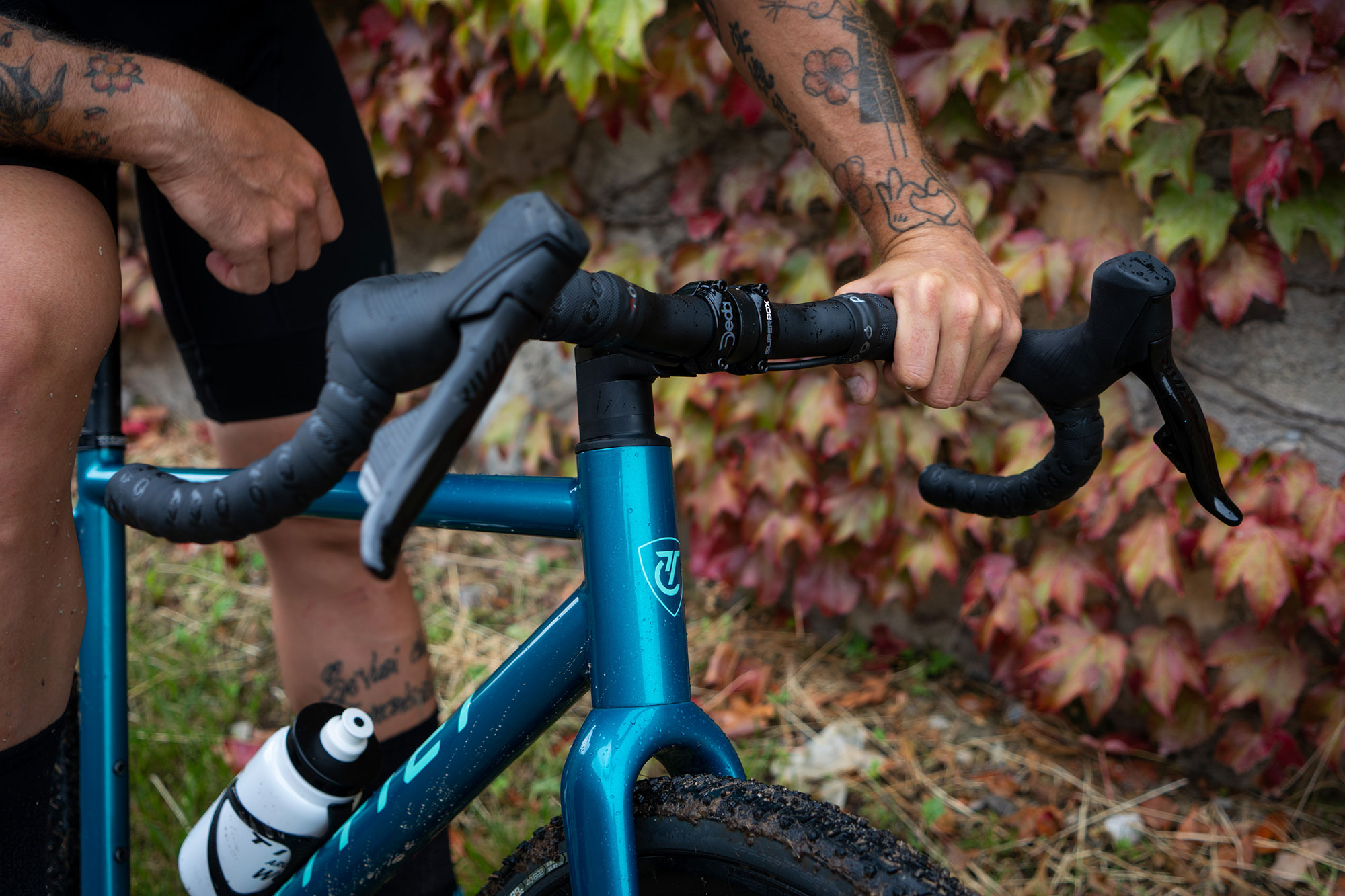

After studying the bike’s behaviour both on and off the road, TITICI introduced an oversized head tube. The top and bottom sections both have a diameter of 1 1/2″, instead of the standard 1 1/8″ top section. The advantage is twofold: greater front-hand stability and the possibility of internal cable routing providing a modern, clean design. ALL-IN does not fail to live up to expectations: attractive styling goes hand in hand with extraordinary riding comfort.
NEW GEOMETRIES: 30MM MAKE THE DIFFERENCE
It’s the attention to detail that makes the difference. The rear triangle of the ALL-IN frame has been completely redesigned compared to the previous aluminium gravel model A-GR01. The seat stays connect to the seat tube 30 millimetres lower than the top tube: this solution results in greater rear end stiffness, which translates into a more confident and reactive ride. The asymmetrical design, with the left stay featuring a distinctive 160° “elbow”, provides superior resistance when braking.
CHANGE THE SET-UP ACCORDING TO YOUR RIDING STYLE
With ALL-IN, it’s the bike that adapts to your riding style and needs – not the other way around. The frame has clearance for up to 700c x 44 or 650b x 48 tyres, to tackle even the most demanding of trails with full confidence. ALL-IN is available with Fulcrum wheels and Deda components.
Technical sheet
| TARGET APPLICATION | Gravel all-around |
| FRAME | Dedacciai alloy |
| FORK | TITICI Gravel DCR |
| ROUTING | Internal |
| SIZES (CM) | S, M, L, XL |
| FRAME WEIGHT | 1690 grams (size M, painted with hardware) |
| HEADSET | Integrated 1.5" |
| BB TYPE | BSA |
| BRAKE MOUNT | Flat Mount |
| FRONT AXLE | 12×100 mm |
| REAR AXLE | 12×142 mm |
| SEAT POST DIAMETER | 31.6 |
| CLAMP | Carbon TI custom |
| MAXIMUM TIRE SIZE | 700×45 - 650bx50 |
| DRIVETRAIN COMPABILITY | Di2, eTap, AXS, EPS or mechanic |
| NOTE | Gravel all-around |
Available setup
| TECHNICAL SPECS | FRAME KIT | ALL-IN APEX | ALL-IN GRX | ALL-IN RIVAL AXS | ALL-IN RIVAL AXS CLASSIFIED |
| STEM | – | Deda Elementi Superbox | Deda Elementi Superbox | Deda Elementi Superbox | Deda Elementi Superbox |
| HANDLEBAR | – | Deda Elementi Gravel 100 | Deda Elementi Gravel 100 | Deda Elementi Gravel 100 | Deda Elementi Gravel 100 |
| SEAT POST | – | Deda Elementi ZERO 31,6 - 18 mm setback | Deda Elementi ZERO 31,6 - 18 mm setback | Deda Elementi ZERO 31,6 - 18 mm setback | Deda Elementi ZERO 31,6 - 18 mm setback |
| WHEEL SET | – | Fulcrum Rapid Red 900 | Fulcrum Rapid Red 900 | Fulcrum Rapid Red 500 | Classified Gravel 3.0 Carbon |
| GROUP SET | – | Sram Apex | Shimano GRX600 | Sram Rival XPLR eTap AXS | Sram Rival XPLR eTap AXS |
| SHIFTER | – | Sram APEX1 11V Flat | Shimano GRX ST-RX600 + BR-RX400 | Sram Rival eTap AXS HRD | Sram Rival eTap AXS HRD |
| REAR DERAILLEUR | – | Sram APEX 1 1X11 V | Shimano 2x11v RD-RX810 34T | Sram Rival XPLR eTap AXS | Sram Rival XPLR eTap AXS |
| FRONT DERAILLEUR | – | — | Shimano FD-RX810 | — | — |
| CRANK SET | – | Sram APEX-1 GXP BLK 42T | Shimano FC-RX600 46/30D | Sram Rival XPLR eTap AXS | Sram Rival XPLR eTap AXS |
| CHAIN | – | Sram PC 1110 11V | Shimano CN-HG601 | Sram Rival D1 12 speed | Sram Rival D1 12 speed |
| CASSETTE | – | Sram PG-1130 11-42 11v | Shimano 11-34 CS-HG700 | Sram Rival XPLR XG-1271,10-44 12v | Classified 11-34 12v |
| DISC BRAKES | – | Sram Centerline 160/160mm | Shimano SM-RT70 Ice-Tech 160/160 | Sram Centerline 160/160mm | Sram Centerline 160/160mm |
| SADDLE | – | Selle Italia Model X | Selle Italia Model X | Selle Italia Model X | Selle Italia Model X |
| TIRES | – | Vittoria Terreno Dry 700×38 | Vittoria Terreno Dry 700×38 | Vittoria Terreno Dry 700×38 | Vittoria Terreno Dry 700×38 |
| GRIP | – | Deda Elementi Tape | Deda Elementi Tape | Deda Elementi Tape | Deda Elementi Tape |
| PRICE | € 2.290 | € 3.490 | € 3.890 | € 4.390 | € 5.990 |
