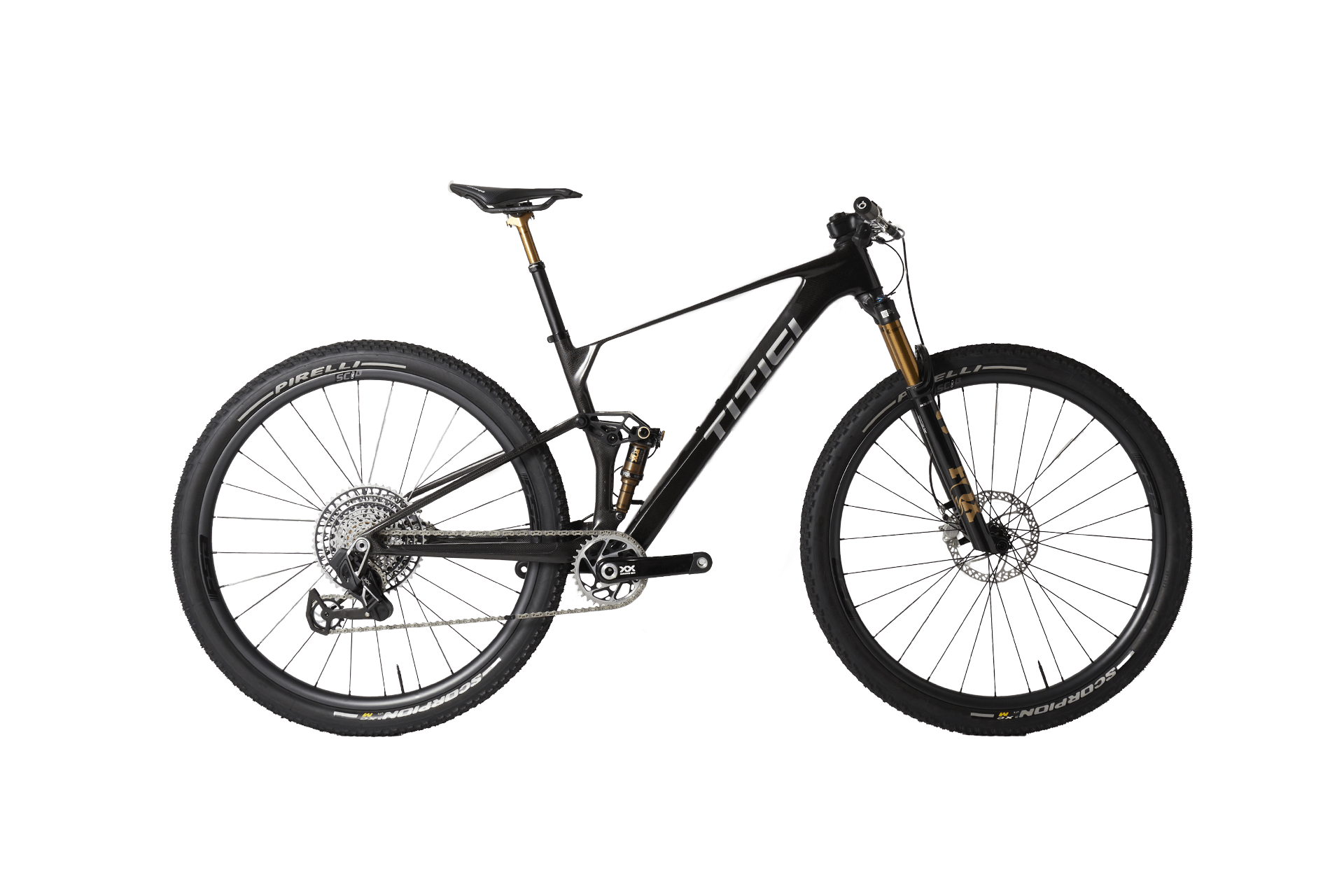

Vertigo
CALIBRATED SUSPENSION ARCHITECTURE
The suspension design provides 100mm of controlled rear-wheel travel paired with a 120mm fork integration. This architecture creates an optimized front-to-rear ratio for cross-country race dynamics and marathon endurance events. The kinematics deliver efficient power transfer during climbing while maintaining sensitivity and resistance during technical sections, ensuring consistent performance across varied terrain profiles.
Vertigo
ADVANCED COMPOSITE CONSTRUCTION
The VERTIGO frame incorporates a precisely calibrated blend of carbon fiber compositions with strategic placement of 3K, 6K, T700, M30, and unidirectional fibers.
This approach enables specific tuning of frame characteristics: torsional rigidity at power transfer points, vertical compliance for vibration management, and impact resistance in vulnerable areas. The result is a competitive 1800g frame weight (size M, ready-to-paint) with optimal structural integrity.
Vertigo
CONTEMPORARY TECHNICAL STANDARDS
The frame incorporates current technical specifications for component compatibility:
- Boost hub spacing with Universal Derailleur Hanger (UDH)
- PressFit 92 bottom bracket system
- 30.9mm dropper seatpost compatibility
- Clearance for modern XC tire profiles up to 29×2.4″
Vertigo
MTB HERITAGE
The VERTIGO continues TITICI’s mountain bike development that began in 1984, when the discipline first established itself in European racing. This heritage evolved through our pioneering work with 29″ wheel formats in 2007 with the Fieltynine platform, where we anticipated industry direction by several years.
This bike represents the contemporary expression of our technical MTB lineage, incorporating advanced carbon manufacturing with performance insights gained through decades of off-road engineering.
Technical sheet
| TARGET APPLICATION | MTB XC/ MT |
| FRAME | Blend of multilayer carbon fibres (3K, 6K, T700, M30, Unidirectional) |
| FORK | – |
| ROUTING | Internal |
| SIZES (CM) | S, M, L or Custom |
| FRAME WEIGHT | 1800 grams (size M, RTP with hardware) |
| HEADSET | Integrated 1.5" |
| BB TYPE | Press Fit |
| BRAKE MOUNT | Post Mount |
| FRONT AXLE | – |
| REAR AXLE | 12×148 mm |
| SEAT POST DIAMETER | 30.9 mm |
| CLAMP | Carbon-Ti custom |
| MAXIMUM TIRE SIZE | 29×2.4 |
| DRIVETRAIN COMPABILITY | Di2, AXS or mechanic |
| NOTE | UDH standard ready |
Available setup
| TECHNICAL SPECS | FRAME KIT | XX SL + RAICAM |
| FORK | FOX 34 SL FACTORY 120 R | |
| SHOCKS | not included | FOX FLOAT SL 165×45 TR R |
| STEM | — | |
| HANDLEBAR | FSA NS SIC Integrated MTB HB | |
| SEAT POST | FOX TRANSFER SL 30,9x100 mm | |
| WHEEL SET | FSA NS SCi30 | |
| GROUP SET | SRAM XX SL T-TYPE | |
| SHIFTER | SRAM POD ULT AXS | |
| REAR DERAILLEUR | SRAM XX SL EAGLE T-TYPE | |
| FRONT DERAILLEUR | — | |
| CRANK SET | SRAM XX SL 34T | |
| CHAIN | SRAM XX SL T-TYPE | |
| CASSETTE | SRAM XS 1299 T-Type 10-52 | |
| DISC BRAKES | RAICAM RXC factory Alu 180/160 | |
| SADDLE | PROLOGO DIMENSION | |
| TIRES | PIRELLI SCORPION M 29×2,2 | |
| GRIP | PROLOGO MASTERY GRIP | |
| WEIGHT (W/O Pedal) | 1,8 Kg | 10,3 Kg |
| PRICE | € 4.990 | € 12.990 |
* recommended retail price. Does not include shipping costs and duties. The price may change according to different currencies and geographical areas.
